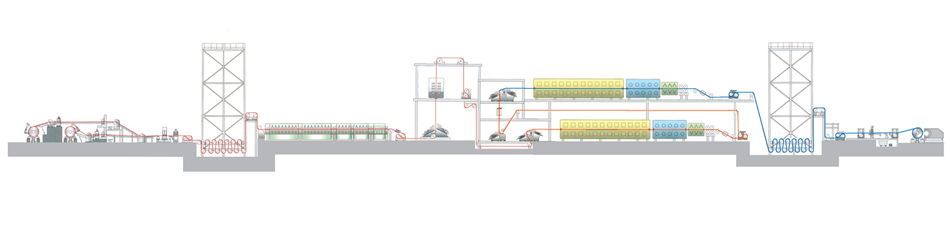

Two-stage high-efficiency degreasing to remove oil and residues from coils, ensuring a clean surface for further processing.

Two-stage ultra demineralized (DM) water rinsing for superior surface preparation.

2-roll reverse vertical Chemi Coater applying a chrome-free pretreatment for high corrosion resistance, excellent paint adhesion, and environmental sustainability.

Primer coating using a servo-controlled 3-roll reverse roller machine for precise and consistent application.

Air-floatation primer oven for uniform and consistent curing of primer coats.

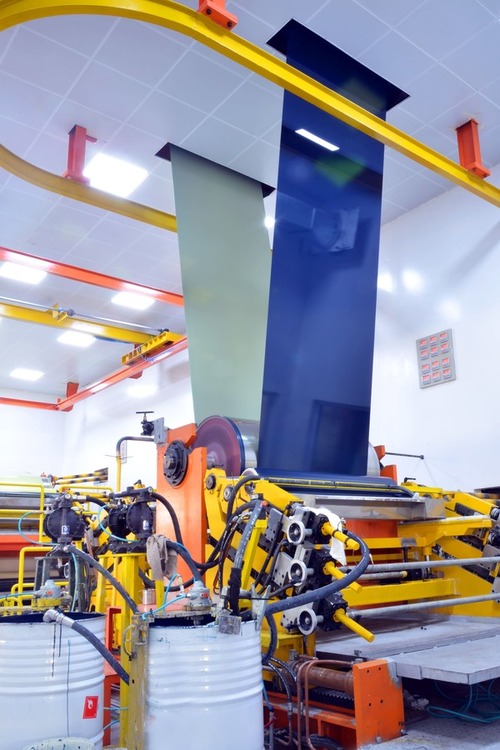

Top coating with a servo-controlled 3-roll reverse roller machine for flawless finish quality.

Air-floatation finish oven to cure the topcoat evenly and maintain colour integrity.

Quality control inspection to ensure all specifications are met after coating.

Finished coated product ready for downstream processing.

Slitting to the required width with precision cutting equipment.

Final quality control inspection before packaging.

Secure packing to protect products during transit.

Dispatch to customers with timely delivery assurance.
